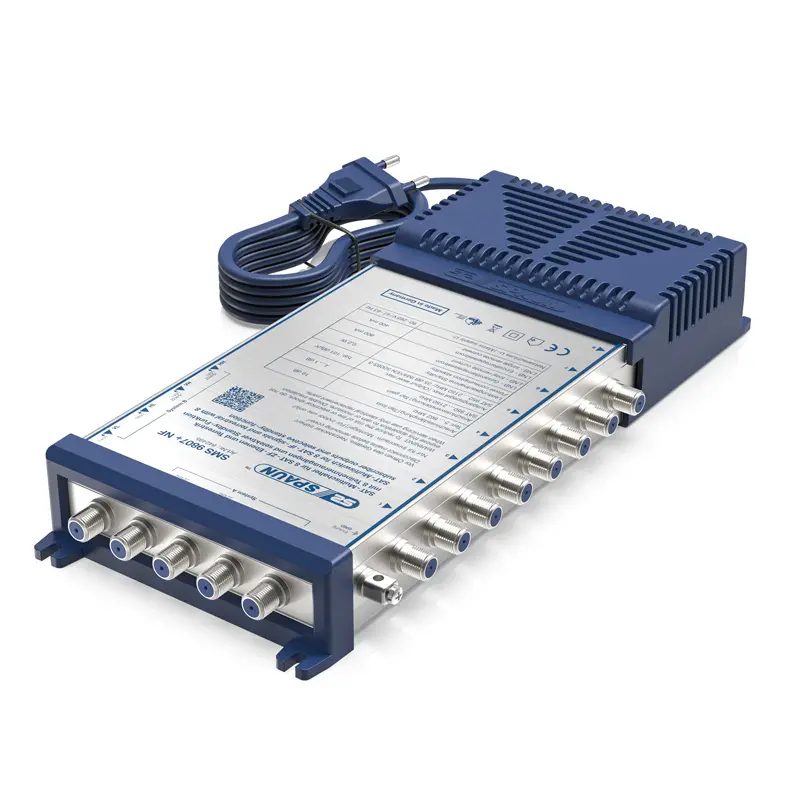

Spaun SMS 9807+ NF - Multiswitch
Spaun SMS 9807+ NF - Multiswitch
€114.90*
% €149.90* (23.35% saved)- 8 subscribers independently – every output feeds one receiver that switches freely between all bands
- Two satellite positions – designed for Astra 19.2 degrees East and Hotbird 13 degrees East
- Standby at 0.1 watt – amplifiers and remote supply run only while at least one receiver draws supply voltage
- For two Quattro LNBs – takes 2 x Quattro LNB for both satellite positions
- Return path capable terrestrial input – passive design, suitable for systems with a return channel as well
- Short-circuit proof power supply – built in, runs on 90 to 240 volts and 47 to 63 hertz
- 500 mA remote supply current – feeds the connected LNBs reliably over the satellite cabling
No longer available
Back in stock? We'll let you know!
This item is currently out of stock. Enter your e-mail address and we will notify you once as soon as it is available again.
Product information "Spaun SMS 9807+ NF - Multiswitch"
The Spaun SMS 9807+ NF distributes two satellites to 8 subscriber outputs. Its defining feature is the standby circuit: the satellite IF amplifiers and the LNB remote supply only run while at least one receiver feeds a supply voltage. With the system idle, consumption falls to typically 0.1 watt – over the years the difference you notice most against a distributor that runs around the clock.
Technical data
| Type | SMS 9807+ NF (item no. 842495) |
| Satellite positions | 2 |
| Subscriber outputs | 8 |
| Suitable LNB | 2 x Quattro LNB |
| Standby power | typ. 0.1 W |
| Terrestrial input | passive, return path capable |
| Power supply | built-in switch mode power supply, 90–240 V, 47–63 Hz, short-circuit proof |
| LNB remote supply current | max. 500 mA |
The connected receivers select the polarisation and band themselves using the usual switching criteria. The terrestrial input is return path capable, so systems with a return channel can be built with it as well. Make sure the input levels of the satellite bands arrive at a similar strength.
Spaun develops and manufactures its multiswitches in Germany – design, production and technical support come from one source. You will find the complete range in the Multiswitch category.
| Distribution principle: | Direct connection (legacy) |
|---|---|
| Serie: | SMS |
